Technical data on item group 12963220
Industrial Ethernet switch 2x 10GbE SFP+ and 8x GbE RJ-45 PoE+

The manageable 10 Gigabit Ethernet switch enables the high-performance connection of Gigabit Ethernet end devices, that are supplied with operating power via the RJ-45 data cable by PoE Power over Ethernet. The two SFP+ slots enable the simultaneous operation of several cameras while avoiding an Uplink / Downlink bottleneck. The input voltage range from 12V DC to 55V DC ensures adaptability to many environments without additional DC-DC converter. The extended operating temperature range also expands the possible uses. Redundant paths and security protocols can be implemented via the management.
Technical data
EMS electromagnetic sensitivity	CE EN55024/EN61000-6-2 Class A: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
manageable	IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power lost warning, relay trigger
Port(s) electrical	8x 10/100/1000MBit/s 1000Base-T RJ-45   Gigabit Ethernet PoE+ ports auto-negotiation, full/half duplex, auto-MDI/MDI-X RS232 Serial:   1x RS232 RJ45 connector, console cable,   baud rate 115,200bps,8,N,1 1x USB Port
Port(s) optical	2x dual speed SFP+ slots for 1GbE SFP and / or 10GbE SFP+ modules
PoE ports	max. 30W /Port PoE Standards IEEE 802.3at IEEE 802.3af
PoE Budget	input voltage 12V DC 24V DC 36V..55V DC total PoE budget 90W 180W 240W
Pin assignment PoE	V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, Mode A)
Framesize	9.6 KBytes Jumbo Frame Support
Security	Port-based/Single/Multi 802.1X, ACL(Port/Rate Limiters/ACE), MAC-based Authentication, VLAN assignment, QoS Assignment, Private VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding, WEB/CLI authentication, Authorization (15 levels), Port Security Limit Control, ACLs for filtering/policing/port copy, IP source guard, ARP Inspection
L2 Switching	Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching	DHCP option82, static routes
LEDs	System: Power 1, Power 2, Master, Ring, Status Ethernet ports: Speed/Link/Active PoE: On-connected to PD devices SFP: Link/Active
Housing	IP30 metal case
Mounting	DIN rail or wall mounting both included in delivery
Dimensions	WxHxD 54x142x99mm
Fault Alarm Contact	24 VDC, 1A resistive
Weight	1,17kg
Power requirements	Dual 12-55VDC redundant power inputs Overload Current Protection (Slow-Blow Fuse) Reverse Polarity Protection
Power consumption	Max. 15.5W full loading + PoE
Operating temperature	-40°C ... +60°
Storage temperature	-40°C ... +85°C
EMI electromagnetic interference	FCC Part 15 Subpart B Class A CE EN55022/EN61000-6-4 Class A
Stability tests	IEC60068-2-32 Free Fall IEC60068-2-27 Shock IEC60068-2-6 Vibration
MTBF	341,855 hrs. (Telcordia SR-332, Issue 3, GB, 25°C)
Compliance	RoHS NEMA TS2 (ITS)
Ordering information item 129632200 Mng. Ind. 10GbE switch 12V~55V DC 2x10GbE SFP+ and 8xGbE PoE+ Ordering information Accessories 12233904 SFP+ 10GBase-SR multimode 850nm 300m -40..+85°C DDM 12233911 SFP+ 10GBase-LR singlemode 1310nm 10km -40..+85°C DDM 114462512 PoE splitter 40..60V DC 12V / 2.08A 25W GbE 802.3at 114462524 PoE splitter 40..60V DC 24V / 1.04A 25W GbE 802.3at 114462612 PoE splitter 40..60V DC 12V / 2.08A 25W GbE 802.3at DIN rail 114462624 PoE splitter 40..60V DC 24V / 1.04A 25W GbE 802.3at DIN rail

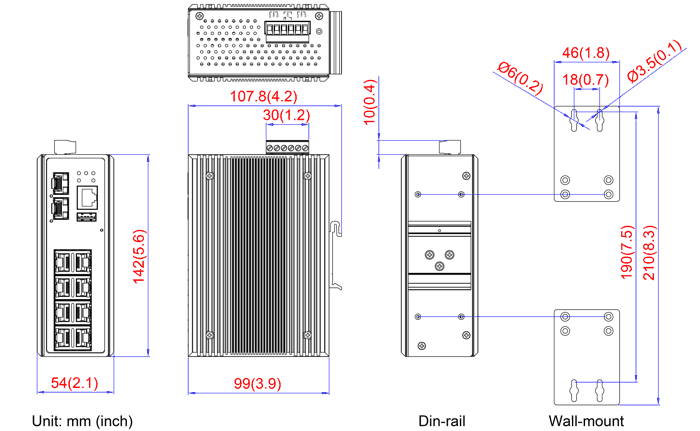

Dimensional drawing
